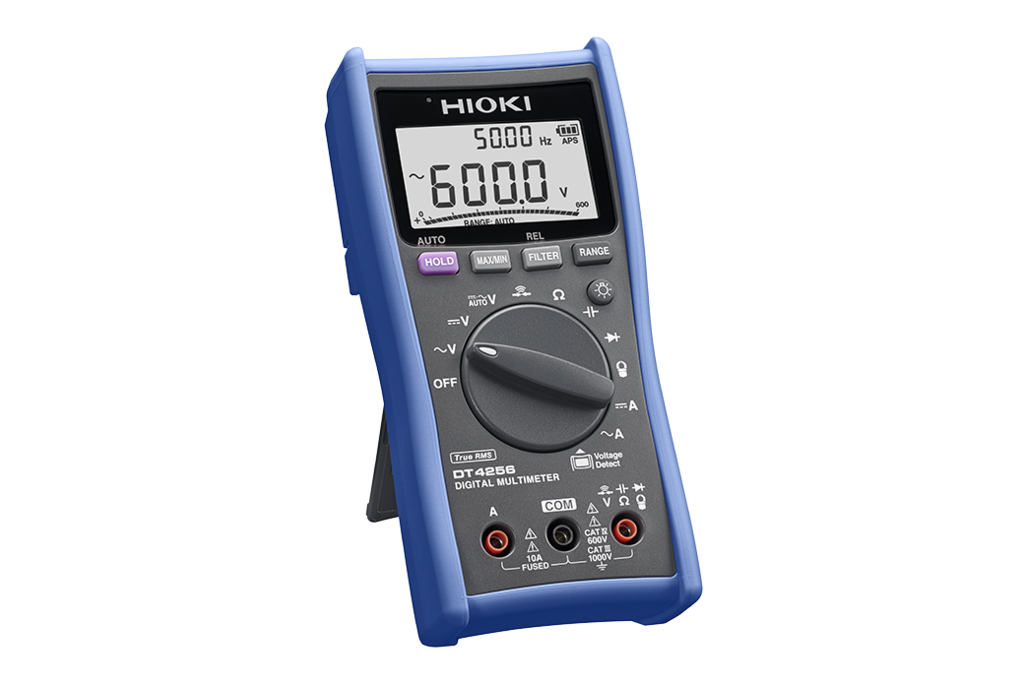

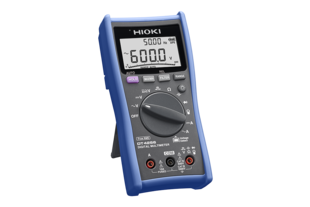

Hioki DT4256 General Purpose Digital Multimeter, 10A direct input with ranges down to 60mA

• DC Voltage range 600.0 mV to 1000 V, 5 ranges. Basic accuracy: ±0.3 % rdg. ±3 dgt.
• AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz. Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
• AUTO AC/DCV: Yes
• Resistance range: 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±3 dgt.
• DC Current range: 60.00 mA to 10.00 A, 4 ranges, Basic accuracy: ±0.9 % rdg. ±3 dgt.
• AC Current range 600.0 mA to 10.00 A, 3 ranges, Basic accuracy 40 - 500 Hz : ±1.4 % rdg. ±3 dgt. (True RMS, crest factor 3, 40 Hz to 1 kHz)
• Voltage detection: (50/60 Hz) Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
• Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
• Frequency range 99.99 Hz (5 Hz or more) to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage and current), Basic accuracy: ±0.1 % rdg. ±1 dgt.
• Continuity check Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more, Response time: 0.5 ms or more
• Diode test Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
• Other functions Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
• Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
• Power supply LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
• Included accessories Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4

More detailed specifications and dimensions of available models are specified in data sheet. Detalii
