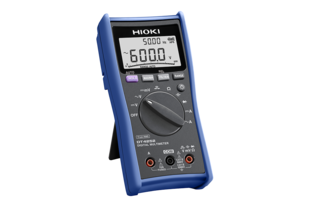

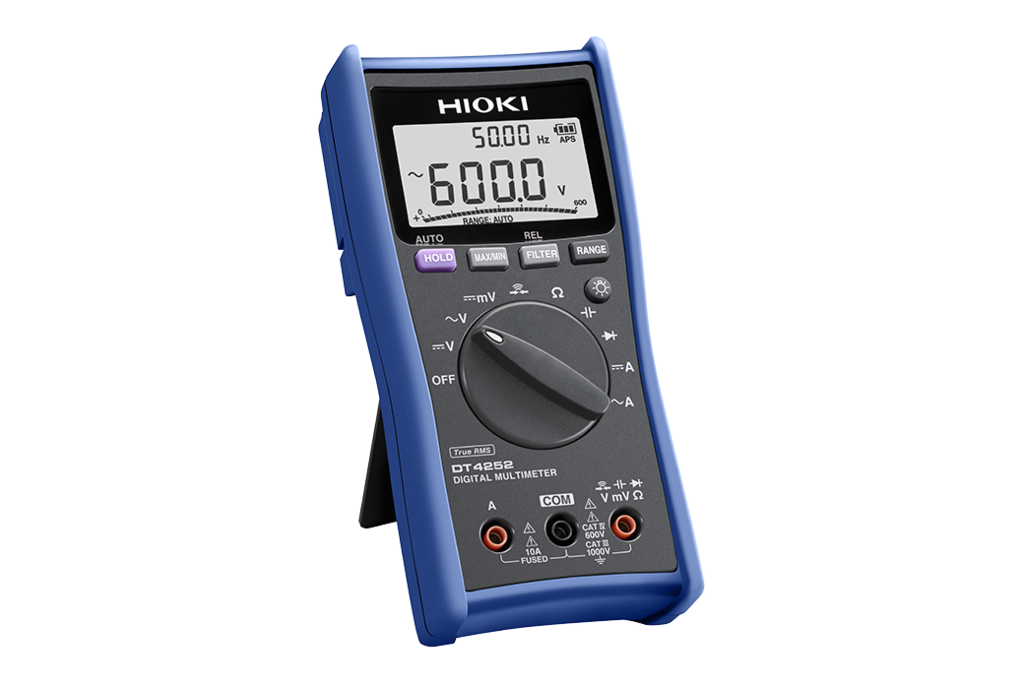

Hioki DT4252 General Purpose Digital Multimeter, 10A direct input, frequency, resistance, capacitance

• DC Voltage range: 600.0 mV to 1000 V, 5 ranges. Basic accuracy: ±0.3 % rdg. ±5 dgt.
• AC Voltage range: 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz - 1 kHz. Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
• Resistance range: 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt.
• DC Current range: 6.000 A / 10.00 A, 2 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.
• AC Current range 6.000 A / 10.00 A, 2 ranges, Basic accuracy 40 - 500 Hz : ±1.4 % rdg. ±3 dgt. (True RMS, crest factor 3, 40 Hz to 1 kHz)
• Capacitance range: 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
• Frequency range: AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V). Basic accuracy: ±0.1 % rdg. ±1 dgt.
• Continuity check: Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more. Response time: 0.5 ms or more
• Diode test: Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
• Other functions: Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
• Display: Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
• Power supply: LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)
• Included accessories: Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4

More detailed specifications and dimensions of available models are specified in data sheet. Detalii
