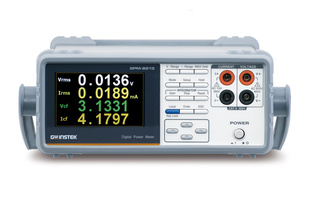

GW Instek GPM-8213 Digital Power Meter(RS-232C/USB device/LAN)
- 4” TFT LCD
- Two data display modes: Standard - two major measurement items + six secondary measurement items / Simple - displaying test data of four different measurement items
- Listed as an accepted device for SPEC Power® testing
- Met the requirement of IEC 62301 power measurement
- Voltage/ current test frequency bandwidth : DC-6kHz
- Watt resolution: 1mW
- Lowest current range: 5mA, resolution : 0.1uA
- Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range
- W-h (power vs time)/A-h (current vs time) integration function
- Total harmonic distortion measurement
- Front panel test terminal
- Standard interface: RS-232C, USB device, LAN (+ optionally GPIB) Detalii
| excl. TVA | € 850.00 |
| Preț cu TVA | € 1 011.50 |
| Solicitați o ofertă | |
| Accesibilitate | On inquiry |
| Cod produs | GW_GPM-8213 |
Guarantee 24 months
Descriere detaliată GW Instek GPM-8213 Digital Power Meter(RS-232C/USB device/LAN) descriere producători
GW Instek GPM-8213 power meter is designed specifically for single-phase (1P/2W) AC power supply’s power measurements. Powerful features, including 4” TFT LCD, five-digit measurement display, 19 power measurement parameters, integral measurement function, high-accuracy voltage/current/power measurement capabilities, front/rear panel input terminals, and various communications ports, are to facilitate users with clear, convenient, and accurate power measurements.
Descărcați GW Instek GPM-8213 Digital Power Meter(RS-232C/USB device/LAN)
