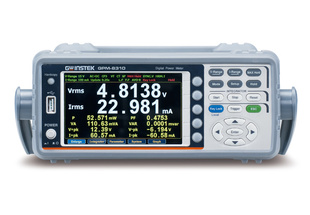

GW Instek GPM-8310 Digital Power Meter (RS-232/USB device and host/LAN/GPIB)

GW Instek GPM-8310 Digital Power Meter (RS-232/USB device and host/LAN/GPIB)


  • 5”TFT LCD
  • DC, 0.1Hz - 100kHz voltage/current test bandwidth
  • Two numerical display modes: General mode: displays 2 main test items + 8 secondary test items ; Simple mode: displays the test values of 4 main test items
  • Waveform display: V (voltage), I (current), P (power)
  • The current/voltage can be measured to a deformed wave with CF of 3, and the half-range CF can reach 6 or 6A
    •
  • 50th order of harmonic measurement and analysis (value and bar graph)
    •
  • Integration function supports automatic level-changing
  • External current sensor input terminals (EXT1/EXT2)
  • Standard interfaces: RS-232C, USB device/ host, LAN, GPIB
  • Optional interface: Digital I/O (DA4) (must be installed before leaving the factory)
    • Detalii

Alte produse din categoria
excl. TVA € 1 397.00
Preț cu TVA € 1 662.43
 pcs
Solicitați o ofertă
Accesibilitate On inquiry
Cod produs GW_GPM-8310

Guarantee 24 months

Manufacturer's product page

Descriere detaliată GW Instek GPM-8310 Digital Power Meter (RS-232/USB device and host/LAN/GPIB) descriere producători

GW Instek GPM-8310 is a digital power meter for single-phase (1P/2W) AC power measurement. Features include DC, 0.1Hz~100kHz test bandwidth, 16bits A/D, and 300 kHz sampling rate. It adopts 5” TFT LCD screen with a five-digit measurement display and provides 25 power measurement related parameters, and has a high-precision measurement capability. It also features the ability to display waveform (voltage/current/power), the integration measurement function, harmonic measurement and analysis of each order, external sensor input terminals, and various communication interfaces, etc., to help users achieve clear, convenient and accurate power measurements. This power meter is a most cost-effective power meter with most complete functionalities among the products of the same category.

Înapoi la începutul paginii

Aratădescărcați fișiere: »

Descărcați GW Instek GPM-8310 Digital Power Meter (RS-232/USB device and host/LAN/GPIB)

GPM-8310 Digital Power Meter Brochure
