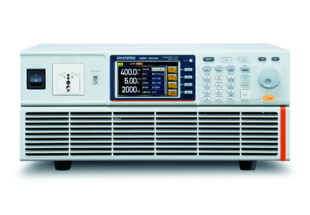

GW Instek ASR-3200 Programmable AC/DC Power Source, 2000VA
GW Instek ASR-3200 Programmable AC/DC Power Source, 2000VA
- Output Rating: AC 0 – 400 Vrms, DC 0 - ± 570 V
- Output Frequency up to 999.9 Hz
- Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
- Voltage and Current Harmonic Analysis(THDv, THDi)
- OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.
- Support Arbitrary Waveform Function
- Customized Phase Angle for Output On/Off
- Interface(standard): USB, LAN, RS-232, GPIB
- Built-in External Control I/O and External Signal Input
- Built-in Output Relay Control
- Memory Function (up to 10 sets)
- Built-in Web Server Detalii
| excl. TVA | € 5 966.00 |
| Preț cu TVA | € 7 099.54 |
| Solicitați o ofertă | |
| Accesibilitate | On inquiry |
| Cod produs | GW_ASR-3200 |
Guarantee 24 months
Descriere detaliată GW Instek ASR-3200 Programmable AC/DC Power Source, 2000VA descriere producători
The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us).
ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.
There are three models of the series: ASR-3200(2kVA), ASR-3300(3kVA) and ASR-3400(4kVA)
Descărcați GW Instek ASR-3200 Programmable AC/DC Power Source, 2000VA
