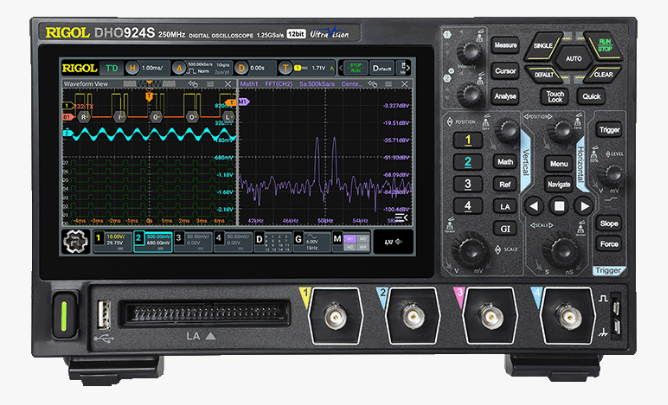

Rigol DHO924S oscilloscope 250MHz, 1.25GSa/s, 4 channels, 16 digital channels, including signal source
- Analog Bandwidth: 250 MHz
- Analog Channels: 4
- Maximum Real-time Sample Rate: 1.25 GSa/s
- Maximum Memory Depth: 50 Mpts
- Maximum Waveform Capture Rate: 1,000,000 wfms/s
- Digital Channels: 16 (Probe opt.)
- Built-in Signal Source: 1-Channel
More detailed specifications and dimensions of available models are specified in data sheet. Detalii
| excl. TVA | € 719.00 |
| Preț cu TVA | € 855.61 |
| Accesibilitate | On inquiry |
| Cod produs | RIG_DHO924S |
Guarantee 24 months
Descriere detaliată Rigol DHO924S oscilloscope 250MHz, 1.25GSa/s, 4 channels, 16 digital channels, including signal source descriere producători
The DHO900 series digital oscilloscope is a highly portable and high-resolution digital oscilloscope based on RIGOL's "Centaurus" technology platform.
High-resolution 12-bit
The DHO900 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.
Support Type-C Power
The Type-C power supply interface design of the DHO900 series allows the device to be powered by a single portable power bank, meeting the requirements of on-site chip testing and circuit maintenance, among other applications.
Sleek Design
The DHO900 series is compact and portable, effectively reducing the burden of carrying equipment for on-site operations. Additionally, it supports VESA standard monitor mounts, making your desktop more organized and saving workspace.
Supports Bode Plot Analysis
The DHO900S is equipped with the Bode diagram loop analysis function, facilitating switch-mode power supply loop analysis and amplitude-frequency response testing of components. This advanced feature enhances the device's capabilities, allowing for comprehensive analysis and optimization of power supply systems and component performance.
Standard Digital Channels
The entire DHO900 series comes standard with digital channels, which, when paired with the PLA2216 logic analysis probe, enables digital signal analysis. This solves the problem of simultaneous analog and digital signal debugging needs in electronic design.
