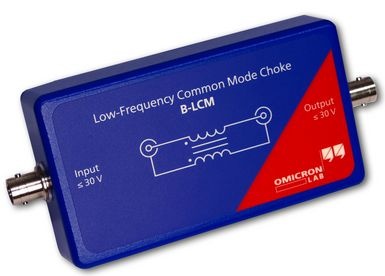

OMICRON LAB P0005778 B-LCM Low Frequency Common Mode Choke, reduces ground-loop errors in e.g. shunt

OMICRON LAB P0005778 B-LCM Low Frequency Common Mode Choke, reduces ground-loop errors in e.g. shunt


  • DC to > 50 MHz
  • 100 Hz to 10 MHz (typ.)
    •
  • ≥ 75 mH @ 1 kHz
    •
  • 175 - 205 pF @ 1 MHz
    •
  • BNC
    •
  • Metal housing with BNC connectors
    •
  • High inductance for low-frequency measurements
  • Low insertion loss and return loss
  • High common mode rejection of > 40dB @ 1Hz (typ.) and > 60dB @ 1kHz (typ.)
  • CE marking (RoHs)

More detailed specifications and dimensions of available models are specified in data sheet. Detalii

Alte produse din categoria
excl. TVA € 530.00
Preț cu TVA € 630.70
 pcs
Accesibilitate On inquiry
Cod produs OMI_P0005778

Guarantee 15 months

Manufacturer's product page

Descriere detaliată OMICRON LAB P0005778 B-LCM Low Frequency Common Mode Choke, reduces ground-loop errors in e.g. shunt descriere producători

B-LCM is a low frequency common mode choke that can be used to reduce ground-loop currents in a test setup.

Typical Applications:

  • Reduce ground-loop error in Shunt-Thru measurements
  • Reduce/suppress common-mode signals
  • Quasi-isolate an input channel for high frequencies
