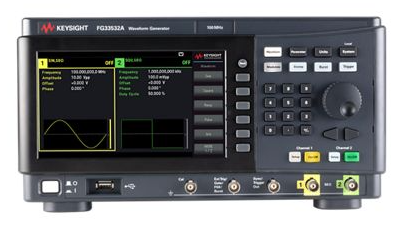

Keysight FG33532A Waveform generator, 100 MHz, 2-channel with arb

Keysight FG33532A Waveform generator, 100 MHz, 2-channel with arb


  • Maximum frequency 100 MHz
  • Number of channels 2
    •
  • Standard Sine, square, ramp, pulse, triangle, Gaussian noise, pseudorandom binary sequence (PRBS), DC
    •
  • Built-in arbitrary Cardiac, exponential fall, exponential rise, Gaussian pulse, Haversine, Lorentz, D-Lorentz, negative ramp, sinc
    •
  • User-defined arbitrary Up to 8 MSa (16 MSa with Option MEM)
    •
  • Operating modes Continuous, modulate, frequency sweep, counted burst, gated burst
    •
  • Modulation types Amplitude Modulation (AM), Frequency Modulation (FM), Phase Modulation (PM), Frequency Shift Keying (FSK), Binary Phase Shift Keying (BPSK), Pulse Width Modulation (PWM), sum (carrier + modulation)
    Two-channel characteristics (FG33532A only)
  • Operating modes Independent, coupled parameter(s), combined (Channels 1 and 2); equal (Channel 1 = Channel 2) or differential (Ch 1 = -Ch 2)
  • Relative phase 0° to 360°, 0.1° resolution
  • Channel-to-channel skew (typical); both channels configured identically < 0.8 ns
  • Crosstalk (typical) < -75 dB

More detailed specifications and dimensions of available models are specified in data sheet. Detalii

Alte produse din categoria
excl. TVA € 1 976.00
Preț cu TVA € 2 351.44
 pcs
Accesibilitate În stoc
Cod produs FG33532A

Guarantee 36 months

Manufacturer's product page

Descriere detaliată Keysight FG33532A Waveform generator, 100 MHz, 2-channel with arb descriere producători

Perform accurate hardware design validation using Keysight Smart Bench Essentials Plus FG33530 series function / waveform generators, equipped with pro-level technology from advanced models. Trueform technology employs a virtual variable clock with advanced filtering techniques to track the waveform’s sample rate. The technology gives you predictable low jitter, low harmonic distortion, and high signal integrity to deliver a true representation of your programmed waveform. The FG33530 series also comes with built-in 16-bit arbitrary waveform generation capabilities and waveform builder software.

Similar to all products in the Smart Bench Essentials Plus family, it comes with a three-year warranty and KeysightCare technical support to de-risk your project. The FG33530 series function / waveform generators enable you to:

  • View and edit signal, or set up parameters simultaneously on a 7-inch color display.
  • Achieve jitter of less than 50 ps.
  • Maintain total harmonic distortion of less than 0.06%.
  • Enable 16-bit arbitrary waveform capability with up to 16 M samples per channel memory.
  • Simulate typical test applications with six built-in modulation types and 17 popular waveforms.

    • Înapoi la începutul paginii

    Aratădescărcați fișiere: »

    Descărcați Keysight FG33532A Waveform generator, 100 MHz, 2-channel with arb

    Keysight FG33530A Series Datasheet
    Typ souboru: pdf Tip fișier: pdf
