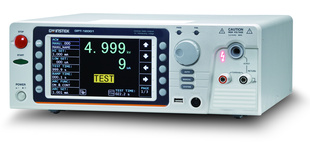

GW Instek GPT-12001 200VA AC Withstanding voltage electrical safety analyzer

Descriere detaliată GW Instek GPT-12001 200VA AC Withstanding voltage electrical safety analyzer descriere producători

GW Instek introduces the flagship model safety analyzer the GPT-12000 series (200 VA output capacity), which is the first safety analyzer in the world to comply with IEC 61010 2 034 (Safety requirement for electrical requirement for measurement, control and laboratory use particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments.

The entire series provides an output capacity of 200VA and utilizes a high efficient PWM amplifier to effectively exclude the influence from the fluctuating input voltage or distorted waveforms so as to guarantee a stable high voltage output while conducting AC withstanding voltage test on the DUT to meet the safety regulations such as IEC, EN, UL, CSA, GB and JIS that demand the test requirements for various electronic/electrical products or parts.

The series utilizes 7-inch color TFT LCD and inherits the consistent simplicity key design style of the product family to allow users to experience easy operations and a clear observation of the test results. The major test functions include AC withstanding voltage test (AC 5kV/40mA), DC withstanding voltage test (DC 6kV/10mA), insulation resistance test (DC 50V-1200V/50GΩ max.), ground bond test (AC 32A /650mΩ max.), and grounding continuity test (DC 100mA fixed/70Ω max.).
