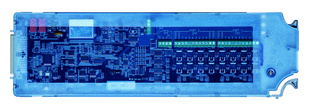

GW Instek DAQ-907 Multifunction Module
- 16 bits of digital input and output
- 100 kHz totalizer input
- Two analog modes: ±12 V outputs or ±24 mA outputs
More detailed specifications and dimensions of available models are specified in data sheet. Detalii
| excl. TVA | € 533.00 |
| Preț cu TVA | € 634.27 |
| Accesibilitate | On inquiry |
| Cod produs | GW_DAQ-907 |
Guarantee 24 months
Descriere detaliată GW Instek DAQ-907 Multifunction Module descriere producători
DAQ-907 provides great flexibility for various sense and control applications. It engages two 8-bit digital input and output ports, a 100 kHz gated totalizer, and two ± 12 V or ± 24 mA analog outputs— all on a single earth-referenced module. The digital inputs and totalizer input may be included in a scan.
Alarm limits for the digital and totalizer inputs are evaluated continuously, capturing and logging alarm conditions even between scans. In addition, it has two additional channels (DMM INPUT and DMM CURRENT) that can sense output current when sourcing voltage or output voltage when sourcing current.
Descărcați GW Instek DAQ-907 Multifunction Module
