PSB 10000 2U

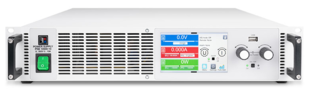

Elektro-Automatik PSB_10080_60_2U Bi-directional power supply 0...80V_+-0...60A_+-1500W
Elektro-Automatik PSB_10080_60_2U Bi-directional power supply 0...80V_+-0...60A_+-1500W
- Wide range input, 110 V - 240 V +-10 % 1ph AC
- Active Power-Factor-Correction, typical 0.99
- Bi-directional power supply, 2-quadrants in source and sink
- In load operation, regenerative with energy recovery into the grid
- Very high efficiency up to over 95%
- Voltage from 0 - 10 V up to 0 - 1500 V
- Currents from 0 - 6 A up to 0 - 120 A
- Flexible power regulated DC input/output stages (autoranging)
- Regulation mode CV, CC, CP, CR with fast crossover
- Digital regulation, high resolution with 16bit ADCs and DACs
- Color 5“ TFT display with touch control and intuitive user interface
- Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
- Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
- Integrated function generator with pre-defined curves
- Pre-defined automotive test procedures for LV123, LV124 and LV148
- Integrated battery test mode, battery and fuel cell simulation
- Photovoltaic test mode, MPPT, EN50530
- Built-in interfaces: USB, Ethernet, Analog, USB Host, Master-Slave-Bus, Share-Bus Detalii
EA PSB-10000 2U Series features:
| excl. TVA | € 4 500.00 |
| Preț cu TVA | € 5 355.00 |
| Solicitați o ofertă | |
| Accesibilitate | On inquiry |
| Cod produs | EA_PSB_10080_60_2U |
Guarantee 24 months
Descriere detaliată Elektro-Automatik PSB_10080_60_2U Bi-directional power supply 0...80V_+-0...60A_+-1500W descriere producători
The bi-directional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are 2-quadrant devices which can preform the function of power supply as well as that of an electric load.
Descărcați Elektro-Automatik PSB_10080_60_2U Bi-directional power supply 0...80V_+-0...60A_+-1500W
Tip fișier: pdfAccesorii pentru Elektro-Automatik PSB_10080_60_2U Bi-directional power supply 0...80V_+-0...60A_+-1500W
Produs asociat cu Elektro-Automatik PSB_10080_60_2U Bi-directional power supply 0...80V_+-0...60A_+-1500W Accesorii recomandate
